Solenoid g03

Types of Solenoid G03

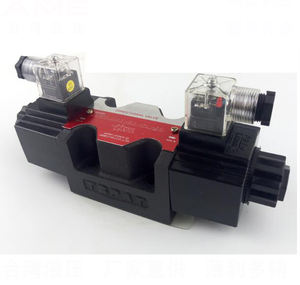

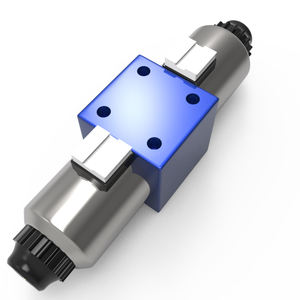

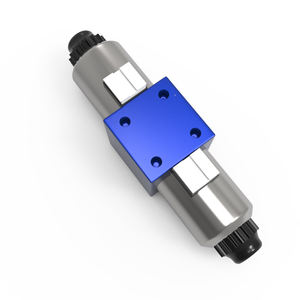

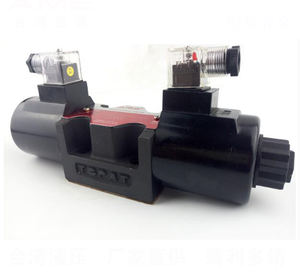

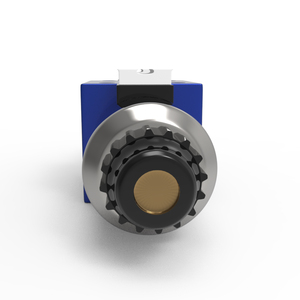

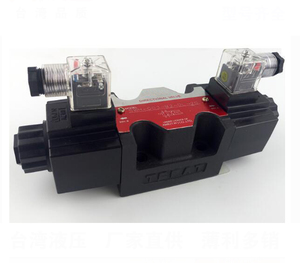

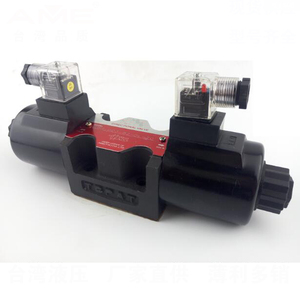

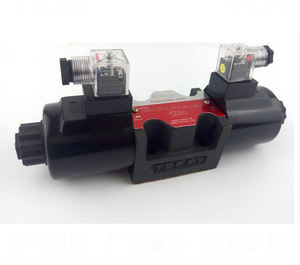

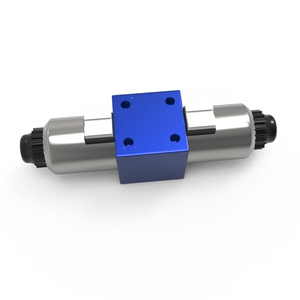

A solenoid G03 is a type of valve used in hydraulic systems. It is a 4-way, 3-position valve, meaning it has four ports and three distinct positions. The G03 solenoid valve can control fluid flow and direction in hydraulic systems effectively. It is suitable for many applications due to its flexibility in controlling actuators. The G03 solenoid valve is commonly available in various configurations and sizes to suit different hydraulic system needs. Here are some common types of G03 solenoid valves:

• Standard G03 Solenoid Valve:

It is a regular type of g03 solenoid valve. It features a simple design and standard performance characteristics. This valve is suitable for general-purpose applications with moderate flow requirements.

• High-Pressure G03 Solenoid Valve:

This type of G03 solenoid valve is specially designed to operate under high-pressure conditions. It features reinforced components and seals to withstand high-pressure fluid systems.

• Modular G03 Solenoid Valve:

Modular G03 solenoid valves have a modular design that allows for easy integration into complex hydraulic systems. These valves can be stacked together to achieve custom flow paths and functions.

• Proportional G03 Solenoid Valve:

Proportional G03 solenoid valves have the ability to precisely control fluid flow rates. They are commonly used in applications where accurate and variable flow control is required.

• Solenoid G03 Solenoid Valve:

These valves incorporate a feedback mechanism, usually a position sensor, that allows the valve to be controlled electronically. They are suitable for applications that require automated control and positional accuracy.

• Latching G03 Solenoid Valve:

Latching G03 solenoid valves have a latching mechanism that allows them to maintain their position without continuous power supply. They are suitable for applications where power consumption is a concern.

• Spring-Centered G03 Solenoid Valve:

Spring-centered G03 solenoid valves use springs to return the valve to the center position in the absence of electrical power. This type of solenoid valve is suitable for use in applications where fail-safe operation is required.

Specifications and Maintenance of Solenoid G03

When designing hydraulic solenoid G03 valve, manufacturers consider various specifications to improve its performance. Below are some of the standard specifications of solenoid g03.

• Flow: This is the maximum amount of fluid that the valve can handle at a specified time. The flow of G03 solenoid varies, depending on the manufacturer's design and the model type.
• Pressure: G03 solenoid can handle a maximum pressure drop across the valve. The pressure drop is measured in Pascals. Most valves have a standard pressure drop capability of 350 bar. However, it can be higher or lower depending on the design.
• Port size: The G03 solenoid has a standard port size. It is available in different sizes, including 3/8", 1/2", and 3/4". These sizes are designed to fit specific hydraulic systems to aid easy fluid flow.
• Material: The solenoid g03 is made of high-quality materials that improve its performance. The materials include the coil housing, which is usually made of metal to act as a heat sink. The coil is made of copper wire. The frame and plunger are made of steel. The armature is made of stainless steel, and the seal material is made of nitrile or Viton. The material of the valve body is either brass or stainless steel.

Like other hydraulic valves, the g03 solenoid valve requires proper maintenance. This will help to improve its longevity and reliability. Below are some of the maintenance practices.

• Regular inspection: It is important to inspect the g03 solenoid valve regularly to check for signs of wear, damage, or corrosion. This will help to determine the condition of the valve and if there are any underlying issues.
• Cleaning: Regular cleaning of the solenoid g03 valve is important to remove debris, dirt, and other contaminants that can affect its performance. During cleaning, it is important to use the right cleaning agents to avoid damaging the valve parts.
• Lubrication: Lubricating the moving parts of the g03 solenoid valve is important to reduce friction and prevent wear and tear. During lubrication, it is important to use the right lubricants that are compatible with the material of the valve.
• Monitor performance: It is important to monitor the performance of the G03 solenoid valve regularly by checking its response time and seal integrity. This will help to detect any underlying issues such as leaks or pressure drops.
• Replacement of worn-out parts: Over time, some parts of the hydraulic solenoid g03 valve may become faulty or worn out. In such cases, it is important to replace the damaged or worn-out parts to improve the overall performance of the valve.

How to Choose Solenoid G03

It is important for business buyers to pay attention to various factors when choosing solenoid valves.

Media Compatibility:

Fluid control solenoid valves of the G03 series are designed for various media types. It is important to ensure that the selected valve is compatible with the specific media being controlled. For example, if it is a fuel or aggressive chemical, it is necessary to ensure that the valve has chemical resistance properties. The wrong selection of media can cause damage to the valve and lead to system failures or leakage.

Pressure and flow requirements:

Before making a choice, users should understand the specific requirements for pressure and flow control in the application. The pressure and flow capacity of the solenoid G03 valve should match the requirements of the system. Oversized or undersized valves can affect system performance or cause premature valve failure.

Action mode:

The G03 solenoid valve has normally open (NO), normally closed (NC), and direct acting (2-way) and pilot-operated (3-way) action modes. Select the appropriate valve action mode according to the operation logic of the control system and the specific requirements of the controlled medium flow process.

Material selection:

The G03 solenoid valve is made of high-quality materials, including brass, stainless steel, and engineering plastics. The selected materials should be compatible with the controlled media and the environment. For example, when selecting a valve for a corrosive environment, a stainless steel valve should be selected. The correct material selection can ensure the durability and stability of the valve.

Seal material:

Seal material is also an important factor in choosing a solenoid valve. The seal material should be compatible with the controlled media and the temperature range of the working environment to ensure the sealing performance of the valve. For example, if the application involves high temperature, the selected seal material should have high-temperature resistance properties.

Environmental aspects:

Consider the environmental factors that may affect the solenoid G03 valve, such as temperature, humidity, and explosion-proof requirements. Choose a solenoid valve with the appropriate protection level to meet the requirements of the working environment and ensure the stable operation of the valve.

How to DIY and Replace Solenoid G03

Replacing a 3-way solenoid valve is a simple process that doesn’t require professional help. The tools required include the following:

• Screwdriver
• Pliers
• New g03 solenoid valve
• Wrench
• Thread seal tape

It is advisable to read the manufacturer’s manual before the replacement. Once the manual is read, follow the steps below:

• Shut off the power supply and air supply.
• Unscrew the mounting bolts of the old valve and remove it from the system.
• Unscrew the electrical connectors and remove the wires.
• Use a wrench to disconnect the old valve from the pipes.
• Apply thread seal tape to the new valve's threads.
• Secure the new valve to the pipes using a wrench.
• Reconnect the electrical connectors according to the polarity.
• Once the electrical connectors are connected, screw the mounting bolts properly.
• Turn on the power supply and air supply.
• Test the new valve to ensure it is working properly.

Q and A

Q1. Is it advisable to replace the entire solenoid valve if the Solenoid G03 valve is faulty?

A1. In some cases, it's not necessary to replace the whole solenoid valve. This is because the fault could be on the arms of the solenoid valve. Check if the wiring and the electrical connection are done correctly. Also, inspect the coil to see if it's burnt out. If the fault persists after the inspection, consider replacing the entire solenoid valve.

Q2. What is the function of the Solenoid G03 valve?

A2. The Solenoid G03 valve is an on and off control valve. It is used in controlling the flow of fluid or air in pneumatic and hydraulic systems. It is ideal for applications that require quick response and high performance.

Q3. What is the difference between a Solenoid G03 valve and other solenoid valves?

A3. The Solenoid G03 valve is the same as other solenoid valves. The only difference is the design and application. G03 solenoid valves are utilized in hydraulic systems to control the flow of hydraulic fluids through a machine. Other solenoid valves are used in controlling the flow of gases and fluids.

Q4. Can the Solenoid G03 valve be used in high-temperature applications?

A4. The Solenoid G03 valve is designed to be used in applications with a standard temperature range. This means it cannot be used in applications with high temperatures. However, there are solenoid valves with high-temperature seals which can be used in high-temperature applications.
